AX-10
New lateral flow reader for 2026 release. Compliments the Axxin AX-2X-S platform reader for advanced applications that require additional high resolution imaging functions, time resolved fluorescence, and active cartridge functions.

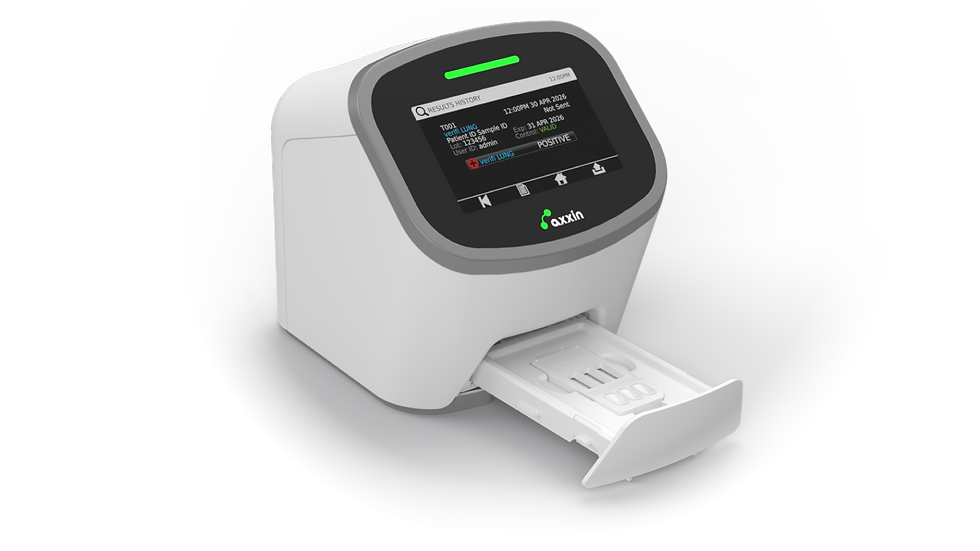

AX-10 Lateral Flow Reader
The AX-10 is a next generation high-sensitivity lateral flow instrument that builds on 20 years of Axxin lateral flow research and regulatory submission experience. Suitable for lined and array lateral flow with optional active cartridge drawer to support thermal management (heating and temperature reading) and fluidic cartridge integration.
The instrument can be operated in standalone mode or remote mode using Kinetic Designer desktop software.
VARIABLE MODES
Immediate read or workflow mode
Visual or fluorescent configuration
HIGH SENSITIVITY
Extremely low Limit of Detection (LOD)
Superior sensitivity compared to human eye
QUANTITATIVE
Quantitative capability algorithm support
Multi-parameter curve fit capability
Batch specific barcode capability
TIME RESOLVED FLUORESCENCE & FRET
Customised optics to support advanced TRF and FRET applications
Improve Signal-to-Noise ratio
%20-%20fixed%20shadow.png)
ADVANCED DESKTOP SOFTWARE FOR ASSAY DEVELOPMENT
Customise test type configuration
In-depth assay result analysis
HIGH RESOLUTION 5-INCH COLOUR SCREEN
Touch screen navigation
Simple easy to use interface
ADVANCED MULTICORE CONTROLLER
Supports responsive operation and real-time calculation of advanced algorithms
NETWORKING
Connectivity over LAN or WiFi
Laboratory Information System (LIS) compatible
RAPID RESULTS CALLING
Repeated read mode
True walk-away mode
CONFIGURE ANY CARTRIDGE
Suitable for single- or multi- strip cartridges with multiple lines or arrays
Active drawer option
ERGONOMIC DESIGN
Optimised for Point of Care and field deployed applications
Low power consumption, optional battery pack
%20-%20fixed%20shadow.png)
REGULATORY PATHWAY
IVD project DHF
EMC and IEC-61010 IVD safety
Established CE, IVDR, FDA submissions
TRACEABLE CALIBRATION
AX-2X-S instruments support national and NIST traceable
Calibrations for colorimetric and fluorescence measurements
CYBERSECURITY
Integrated cybersecurity compliance
QUALITY MANAGEMENT
Instrument check cartridge support
Assay QC workflow
Optional remote management
Illumination & Fliter Bands
The AX-10 provides multispectural images with dedicated illumination bands and narrow bandwidth emission imaging filters.
The table below shows standard configurations, but alternative and additional filters can be installed as project options.
Illumination Type | Dominant Wavelength (nm) | Typical Application |
|---|---|---|
UV (Fluorescence) | 365 ± 10 | Europium Nanoparticles (EuNP) |
Blue | 470 ± 10 | Green Latex |
Green | 520 ± 10 | Colloidal Gold/Red Latex |
Red | 622 ± 10 | Blue Latex |
